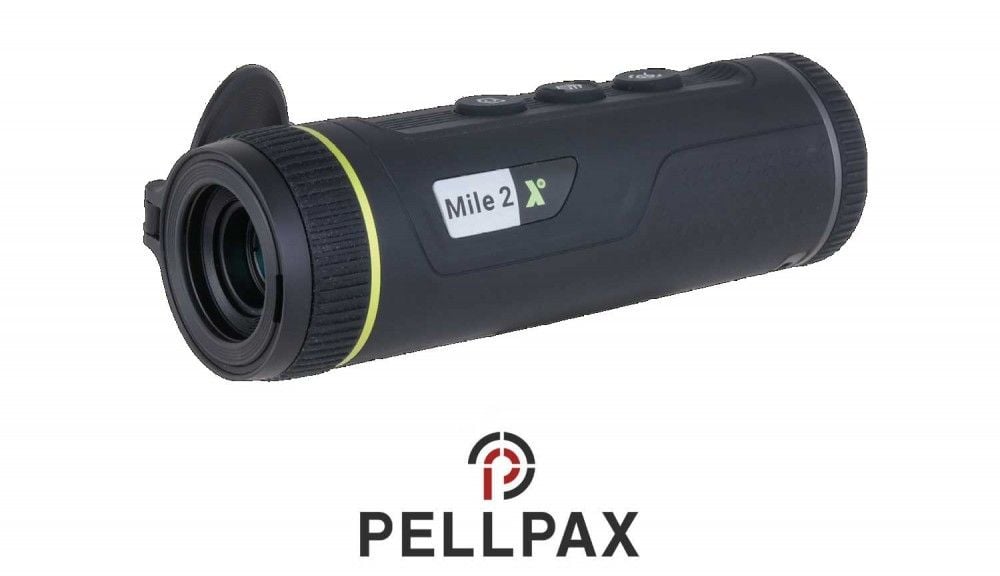

Pixfra Mile 2 M215M Thermal Imaging Monocular

Introducing the Mile 2 M215M thermal imaging monocular, a compact powerhouse that defies expectations with its lightweight design and formidable capabilities. Equipped with a high-performance 256×192, 12μm, <35mK>

With an impressive detection range of up to 800 meters, the M215M ensures that no detail escapes notice, providing users with unparalleled visibility in various environments. Additionally, its strong Wi-Fi connectivity enables seamless integration with up to four smart devices, facilitating effortless collaboration and group sharing within a range of 40 meters.

Setting it apart from its predecessors, the Mile 2 M215M features manual focus control, allowing users to fine-tune their focus for enhanced precision and clarity in their observations. Whether employed for professional surveillance, outdoor exploration, or recreational pursuits, this monocular redefines expectations, delivering unmatched performance and versatility in a compact, user-friendly package.

Specification

• Thermal Sensor: 256×192, 12μm, <35mK NETD
• Objective Lens: 15mm f1.0
• Spectral Range: 8 μm–14 μm
• Field of View: H: 11.7°; V: 8.8°/H: 20.5 m; V: 15.4 m (@100 m)
• Focus Control: Manual
• Close Focus Distance: 2.6 m (8.53 ft)
• Detection Range: Up to 800 m
• Magnification: 2.33x
• Frame Rate: 50 Hz
• Display: 800 × 600, 0.32 inch OLED
• Colour Palettes: 6 (white hot/black hot/iron red/alarm/emerald/amber)
• Video Compression: H.264
• Diopter: –3 D to +1 D
• Eye Relief: 13 mm (0.51 inch)
• Exit Pupil: 5 mm (0.20 inch)
• Digital Zoom: 1×, 2×, 4×, 8×
• Video Recording: Yes
• Still Image Capture: Yes
• Wi-Fi Hotspot: Yes
• Hot Spot Tracking: Yes
• Video Distance Measurement: Yes
• FFC Calibration: Auto, Manual, External Correction
• Standby Mode: Yes
• DPC (Defective Pixel Correction): Yes
• Storage: Built-in 16GB
• Battery Type: Rechargeable Lithium Battery
• Battery Life: 8.5 hours (@ 25°C)
• Power Supply: 5 VDC/2 A
• Port: USB Type-C
• Overvoltage Protection: Yes
• Operating Temperature: –30 to +55 °C (–22 to +131 °F)
• Operating Humidity: ≤95%
• Protection Grade: IP67
• Packaging Dimensions: 180.0 mm × 123.0 mm × 96.0 mm (7.09″ × 4.84″ × 3.78″) (L × W × H)
• Product Dimensions: 155.3 mm × 56.6 mm × 50.3 mm (6.12″ × 2.23″ × 1.98″) (L × W × H)
• Gross Weight: 760 g (1.68 lb)
• Net Weight: 270 g (0.60 lb)
