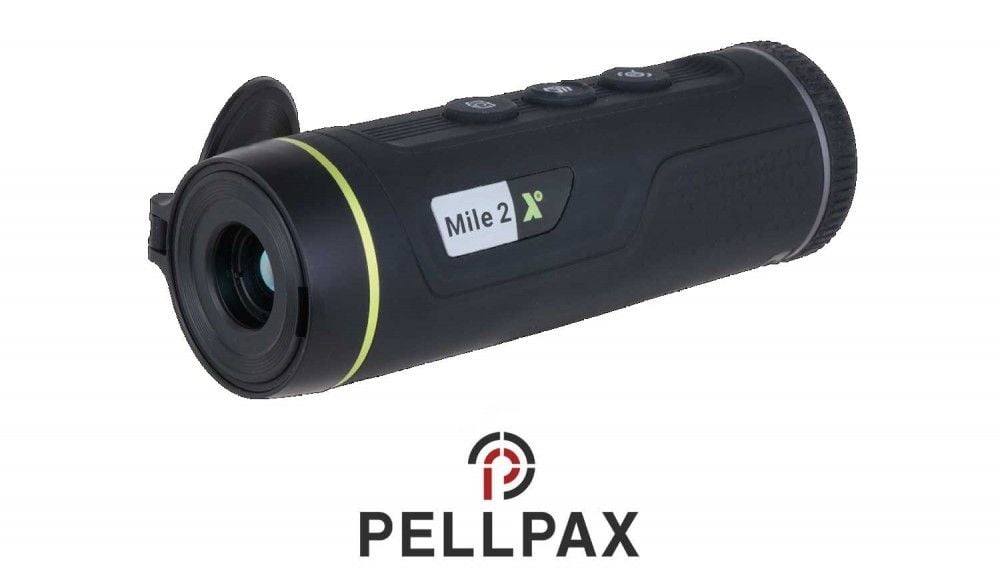

Pixfra Mile 2 M215 Thermal Imaging Monocular

Introducing the Mile 2 M215 thermal imaging monocular, a compact yet formidable tool that defies its lightweight stature with unparalleled performance. Boasting a 256×192, 12μm, <35mK>

With a detection range stretching up to an impressive 800 meters, the M215 ensures that no thermal detail remains hidden, providing users with an expansive field of view for heightened situational awareness. Moreover, its robust Wi-Fi connectivity enables seamless integration with up to four smart devices, facilitating effortless collaboration and group sharing within a range of 40 meters.

Whether utilized for professional surveillance, outdoor exploration, or recreational activities, the Mile 2 M215 sets a new standard in thermal imaging technology, delivering unparalleled performance and versatility in a compact, user-friendly package.

Specification

• Thermal Sensor: 256×192, 12μm, <35mK NETD
• Objective Lens: 15mm f1.0
• Spectral Range: 8 μm–14 μm
• Field of View: H: 11.7°; V: 8.8°/H: 20.5 m; V: 15.4 m (@100 m)
• Focus Control: Fixed-focal
• Close Focus Distance: 2.6 m (8.53 ft)
• Detection Range: Up to 800 m
• Magnification: 2.33x
• Frame Rate: 50 Hz
• Display: 800 × 600, 0.32 inch OLED
• Color Palettes: 6 (white hot/black hot/iron red/alarm/emerald/amber)
• Video Compression: H.264
• Diopter: –3 D to +1 D
• Eye Relief: 13 mm (0.51 inch)
• Exit Pupil: 5 mm (0.20 inch)
• Digital Zoom: 1×, 2×, 4×, 8×
• Video Recording: Yes
• Still Image Capture: Yes
• Wi-Fi Hotspot: Yes
• Hot Spot Tracking: Yes
• Video Distance Measurement: Yes
• FFC Calibration: Auto, Manual, External Correction
• Standby Mode: Yes
• DPC (Defective Pixel Correction): Yes
• Storage: Built-in 16GB
• Battery Type: Rechargeable Lithium Battery
• Battery Life: 8.5 hours (@ 25°C)
• Power Supply: 5 VDC/2 A
• Port: USB Type-C
• Overvoltage Protection: Yes
• Operating Temperature: –30 to +55 °C (–22 to +131 °F)
• Operating Humidity: ≤95%
• Protection Grade: IP67
• Packaging Dimensions: 180.0 mm × 123.0 mm × 96.0 mm (7.09″ × 4.84″ × 3.78″) (L × W × H)
• Product Dimensions: 149.0 mm × 56.6 mm × 50.3 mm (5.87″ × 2.23″ × 1.98″) (L × W × H)
• Gross Weight: 760 g (1.68 lb)
• Net Weight: 270 g (0.60 lb)
