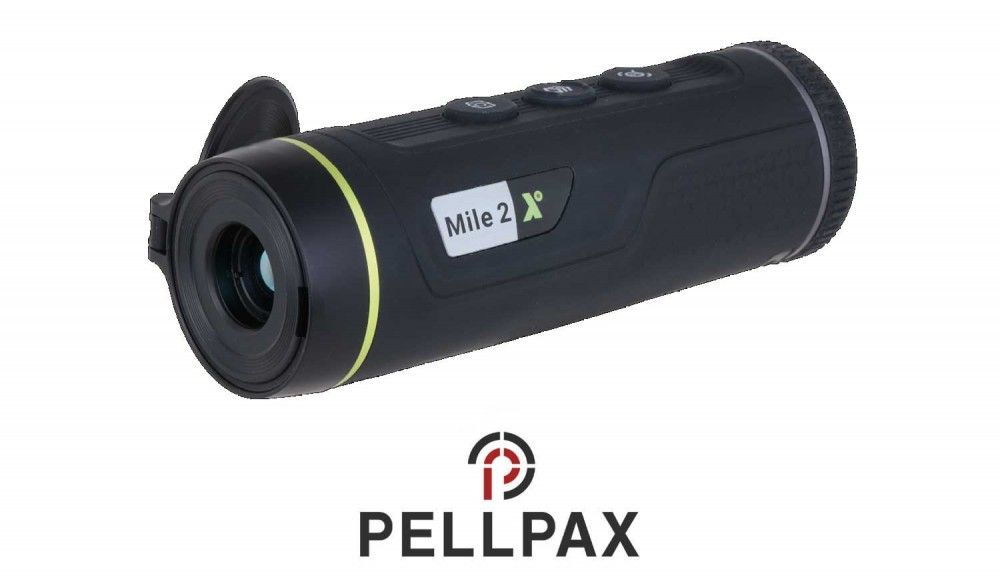

Pixfra Mile 2 M210 Thermal Imaging Monocular

Introducing the Mile 2 M210 thermal imaging monocular, a formidable marvel in compact design and robust performance. Despite its lightweight build, this device packs a punch with its cutting-edge features. Equipped with a 256×192, 12μm, <35mK>

Capable of detecting targets at a range of up to 500m, this monocular ensures no thermal detail goes unnoticed. But its capabilities don't end there. Thanks to its strong Wi-Fi connection, the M210 can seamlessly link with up to four smart devices, facilitating effortless group sharing of captured imagery. With a range extending up to 40m, collaboration becomes effortless, allowing for enhanced situational awareness and coordinated action. Whether for professional surveillance, outdoor exploration, or recreational use, the Mile 2 M210 sets a new standard in thermal imaging technology, offering unmatched performance in a compact and versatile package.

Specification

• Thermal Sensor: 256×192, 12μm, <35mK NETD
• Objective Lens: 10mm f1.0
• Spectral Range: 8 μm–14 μm
• Field of View: H: 17.3°; V: 13.1°/H: 30.7 m; V: 23.0 m (@100 m)
• Focus Control: Fixed-focal
• Close Focus Distance: 1.5 m (4.92 ft)
• Detection Range: Up to 500 m
• Magnification: 1.55x
• Frame Rate: 50 Hz
• Display: 800 × 600, 0.32 inch OLED
• Color Palettes: 6 (white hot/black hot/iron red/alarm/emerald/amber)
• Video Compression: H.264
• Diopter: –3 D to +1 D
• Eye Relief: 13 mm (0.51 inch)
• Exit Pupil: 5 mm (0.20 inch)
• Digital Zoom: 1×, 2×, 4×, 8×
• Video Recording: Yes
• Still Image Capture: Yes
• Wi-Fi Hotspot: Yes
• Hot Spot Tracking: Yes
• Video Distance Measurement: Yes
• FFC Calibration: Auto, Manual, External Correction
• Standby Mode: Yes
• DPC (Defective Pixel Correction): Yes
• Storage: Built-in 16GB
• Battery Type: Rechargeable Lithium Battery
• Battery Life: 8.5 hours (@ 25°C)
• Power Supply: 5 VDC/2 A
• Port: USB Type-C
• Overvoltage Protection: Yes
• Operating Temperature: –30 °C to +55 °C (–22 °F to +131 °F)
• Operating Humidity: ≤95%
• Protection Grade: IP67
• Packaging Dimensions: 180.0 mm × 123.0 mm × 96.0 mm (7.09″ × 4.84″ × 3.78″) (L × W × H)
• Product Dimensions: 149.0 mm × 56.6 mm × 50.3 mm (5.87″ × 2.23″ × 1.98″) (L × W × H)
• Gross Weight: 760 g (1.68 lb)
• Net Weight: 270 g (0.60 lb)
