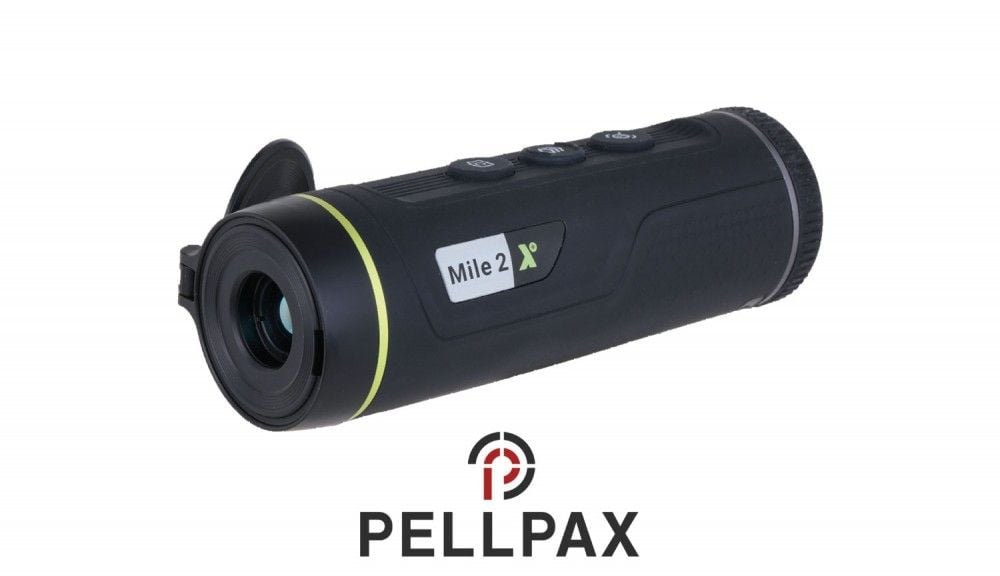

Pixfra Mile 2 M207 Thermal Imaging Monocular

The Mile 2 M207 thermal imaging monocular delivers impressive performance in a compact and lightweight package. Equipped with a 256×192, 12μm, <35mK>

The powerful 7mm f1.0 objective lens offers a wide 24.0° field of view, providing extensive coverage for enhanced observation over large areas. Additionally, the device's strong Wi-Fi capability allows it to connect with up to four smart devices, enabling easy group sharing within a 40-meter range.

Video Recording - Yes
Still Image Capture - Yes
Wi-Fi Hotspot - Yes
Hot Spot Tracking - Yes
Video Distance Measurement - Yes
FFC Calibration - Auto, Manual, External Correction
Standby Mode - Yes
DPC (Defective Pixel Correction - Yes
Storage - Built-in 16GB
Battery Type - Rechargeable Lithium Battery
Battery Life - 9.5 hours (@ 25°C)
Power Supply - 5 VDC/2 A
Port - USB Type-C
Overvoltage Protection - Yes

Specification

Thermal Sensor - 256×192, 12μm, <35mK NETD
Objective Lens - 7mm f1.0
Spectral Range - 8 μm–14 μm
Field of View - H: 24.0°; V: 18.0°/H: 43.9 m; V: 32.9 m (@100 m)
Focus Control - Fixed-focal
Close Focus Distance - 1 m (3.28 ft)
Detection Range - Up to 350 m
Magnification - 1.1x
Frame Rate - 50 Hz
Display - 800 × 600, 0.32 inch OLED
Color Palettes - 6 (white hot/black hot/iron red/alarm/emerald/amber)
Video Compression - H.264
Diopter - –3 D to +1 D
Eye Relief - 13 mm (0.51 inch)
Exit Pupil - 5 mm (0.20 inch)
Digital Zoom - 1×, 2×, 4×, 8×
