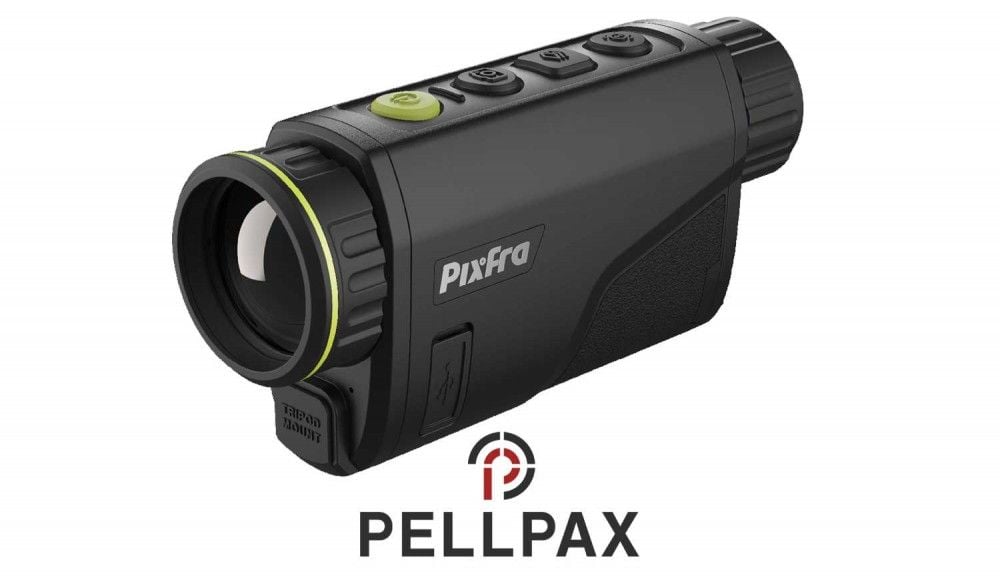

Pixfra Arc A435 Thermal Imaging Monocular

Introducing the Pixfra Arc A435, your ultimate thermal imaging companion. Featuring a highly sensitive 384×288, 12µm, <30mK>

Experience unparalleled detection capabilities with the Arc A435, reaching distances of up to 1800m to spot even the most elusive heat signatures. Immerse yourself in vivid thermal imagery presented on its full-color 1440×1080 OLED display.

But the innovation doesn't stop there. The Arc A435 is packed with features designed to elevate your observation experience. Capture every detail with its built-in video recorder, customize your view with multiple color palettes, and seamlessly share your discoveries through the Pixfra app.

Compact, powerful, and loaded with features, the Pixfra Arc A435 redefines thermal imaging, making it the essential tool for professionals and enthusiasts alike.

Specification

• Product Model: PF-A435
• Detector Type: Vanadium oxide uncooled focal plane detector
• Effective Pixels: 384×288
• Pixel Pitch: 12 μm
• Spectral Range: 8μm～14μm
• Sensitivity (NETD): ≤30mK@f/1.0
• Frame Rate: 50 Hz
• Focal Length: 35mm
• Field of View: H: 7.8°; V: 5.9°
• Detection Range: 1800m
• Magnification: 1.68X
• Color Palettes: 6 (white/black/red/alarm/amber/emerald)
• Close Focus Distance: 2m
• Digital Zoom: 1X、2X、4X、8X
• Display Screen Dimensions: 0.41 inch, OLED
• Screen Resolution: 1440 × 1080
• Diopter: -4D ~ +5D
• Eye Relief: 15mm
• Uniformity Correction: Auto; manual
• Storage: Built-in EMMC (32 GB)
• Audio Recording: YES
• Hot Spot Trace: YES
• Wi-Fi: YES
• Power Supply: 5 V Type-C
• Battery Type: 1 rechargeable Lithium batteries
• Battery Capacity: 3,200 mAh
• Battery Operating Life: ≥7.5h
• Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F)
• Storage Temperature: –30 °C to +70 °C (–22 °F to +158 °F)
• Protection: IP67
• Product Dimensions: 151.8 mm × 42.3 mm × 74.3 mm (L × W × H)
• Packaging Dimensions: 245 mm × 150 mm × 144 mm (L × W × H)
• Net Weight: ≤340 g (0.75 lb)(battery excluded)
