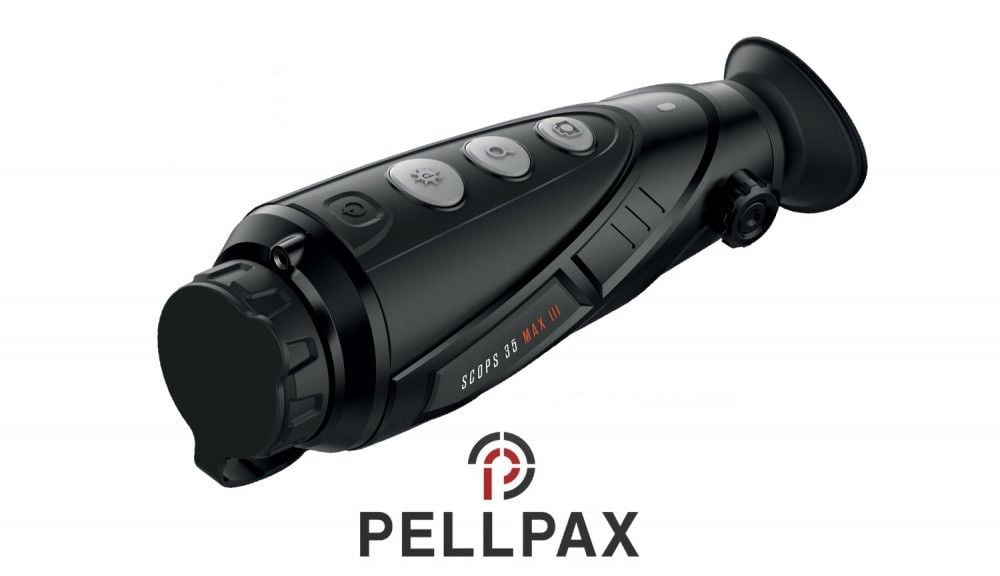

Night Pearl Scops 35 Max III Thermal Imaging Monocular

Introducing the Night Pearl Scops 35 Max III, a remarkable thermal imaging device that seamlessly combines advanced technology with user-friendly design. Sporting an uncooled Vanadium Oxide (VOx) detector, it offers a high resolution of 640 x 512 pixels with a pixel size of 12μm, ensuring detailed and precise thermal imagery. The NETD of ≤25mK guarantees exceptional thermal sensitivity, detecting even subtle temperature variations.

With a fast 50Hz frame rate, the Scops 35 Max III provides a smooth and real-time imaging experience. The 35mm objective lens with a variable magnification range of 2.0 to 8.0x allows for versatile use and a broad field of view (FOV) of 12.5°x10.0°, ensuring a comprehensive view of the scene. For enhanced visibility and situational awareness, it offers five color palettes to suit various preferences and scenarios.

Designed with user comfort in mind, this thermal imager features a diopter range of -4 to +4 and an OLED display with a resolution of 1024 x 768 on a 0.32’’ screen. The device comes with one built-in battery, providing over 7 hours of operating time at 22°C. Its durable build, weighing 450g and measuring 188 × 65 × 64mm, is complemented by an IP66 ingress protection rating, making the Night Pearl Scops 35 Max III reliable and versatile in various environmental conditions.

Specification

• Model: Scops 35 MAX III

• Type: Uncooled VOx

• Resolution, px: 640 x 512 px

• Pixel size, μm: 12

• NETD, mK: ≤25

• Frame Rate, Hz: 50

  Optical Specifications

• Objective Lens, mm: 35, focusing

• FOV, º: 12.5 x 10.0

• Magnification, ×: 2.0 ~ 8.0

• Digital Zoom, ×: 1.0 ~ 4.0, PiP 8x

• Real Detection Range, m: 1818 (Target size: 1.7m×0.5m, P(n)=99%)

• Color Palettes: 5 (white hot; black hot; rainbow; red hot, bird)

• Diopter: -4 ~ +4

  Display Specifications

• Type: OLED

• Dimensions: 0.32’’

• Resolution: 1024 x 768

  Battery Power Supply

• Battery Type: One built-in

• Operating Time (22 ºC), h: >7

• External Power Supply: 5V (Type Micro USB)

  Physical Specifications
  Ingress Protection Rating: IP66
  Memory Capacity, GB: 32
  Operating Temperature, °C: -20 ~ +50
  Weight (with one built-in battery), g: 450
  Dimensions, mm: 188 × 65 × 64
