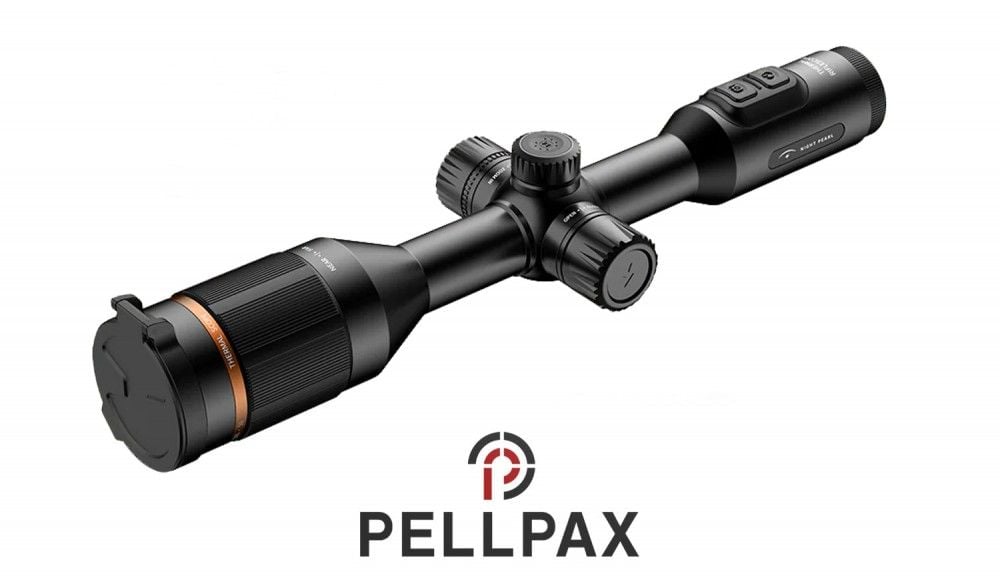

Night Pearl Marten 600 Models Thermal Scope

Discover the Night Pearl Marten Thermal Scope series, designed for exceptional thermal imaging performance across various models. With uncooled Vox technology and a resolution of 640×480 pixels, these scopes offer superior clarity and thermal sensitivity.

Marten 620: Equipped with a 25mm objective lens, this model offers an optical magnification range of 1.4x to 11.2x, suitable for varied applications. Its wide FOV of 17.46° × 13.14° enhances situational awareness.

Marten 630: Designed with a 30mm objective lens, it provides optical magnification from 2x to 16x. The FOV of 12.52° × 9.41° ensures a balanced blend of magnification and peripheral visibility.

Marten 650: Featuring a 50mm objective lens, it provides a versatile optical magnification range from 2.8x to 22.4x, ensuring clear vision even at long distances. The wide FOV of 8.78° × 6.59° adds to its prowess.

Experience impeccable thermal imaging with NETD as low as ≤30mK, ensuring precise detection even in challenging environments. The scopes are lightweight, durable (IP67 rating), and equipped with a reliable power supply, making them ideal companions for your thermal imaging needs. Explore the Night Pearl Marten Thermal Scope series and elevate your viewing experience.

Specification

Objective Lens, mm:
MARTEN 650: 50
MARTEN 620: 25
MARTEN 630: 30
FOV, º:
MARTEN 650: 8.78° × 6.59°
MARTEN 620: 17.46° × 13.14°
MARTEN 630: 12.52° × 9.41°
Optical Magnification, ×:
MARTEN 650: 2.8 ~ 22.4
MARTEN 620: 1.4 ~ 11.2
MARTEN 630: 2 ~ 16
Digital Zoom, ×:
MARTEN 650: 1.0 ~ 8.0
MARTEN 620: 1.0 ~ 8.0
MARTEN 630: 1.0 ~ 8.0
Eye Relief, mm:
48 for all models
Real Detection Range, m:
MARTEN 650: 2000 (Target size: 1.7m×0.5m, P(n)=99%)
MARTEN 620: 1000 (Target size: 1.7m×0.5m, P(n)=99%)
MARTEN 630: 1400 (Target size: 1.7m×0.5m, P(n)=99%)
Display Specifications:
Type:
Micro OLED for all models
Dimensions:
0.39’’ for all models
Resolution:
1024x768 for all models
Battery Power Supply:
Battery Type:
One built-in 18650 battery + two replaceable batteries for all models
Operating Time (22 ºC), h:
10 for all models
External Power Supply:
5V (Type C) for all models
Physical Specifications:
Scope Diameter, mm:
30 for all models
Max. Recoil Power, G/1ms:
500 for all models
Ingress Protection Rating:
IP67 for all models
Memory Capacity, GB:
16 for all models
Operating Temperature,°C:
-30 ~ +50 for all models
Weight (with one built-in battery), g:
MARTEN 650: 990
MARTEN 620: 980
MARTEN 630: 980
Dimension, mm:
MARTEN 650: 377 × 107 × 69
MARTEN 620: 367 × 107 × 69
MARTEN 630: 367 × 107 × 69
